Quick Specs
90°
Right Angle
≤5'
Backlash
IP65
Protection

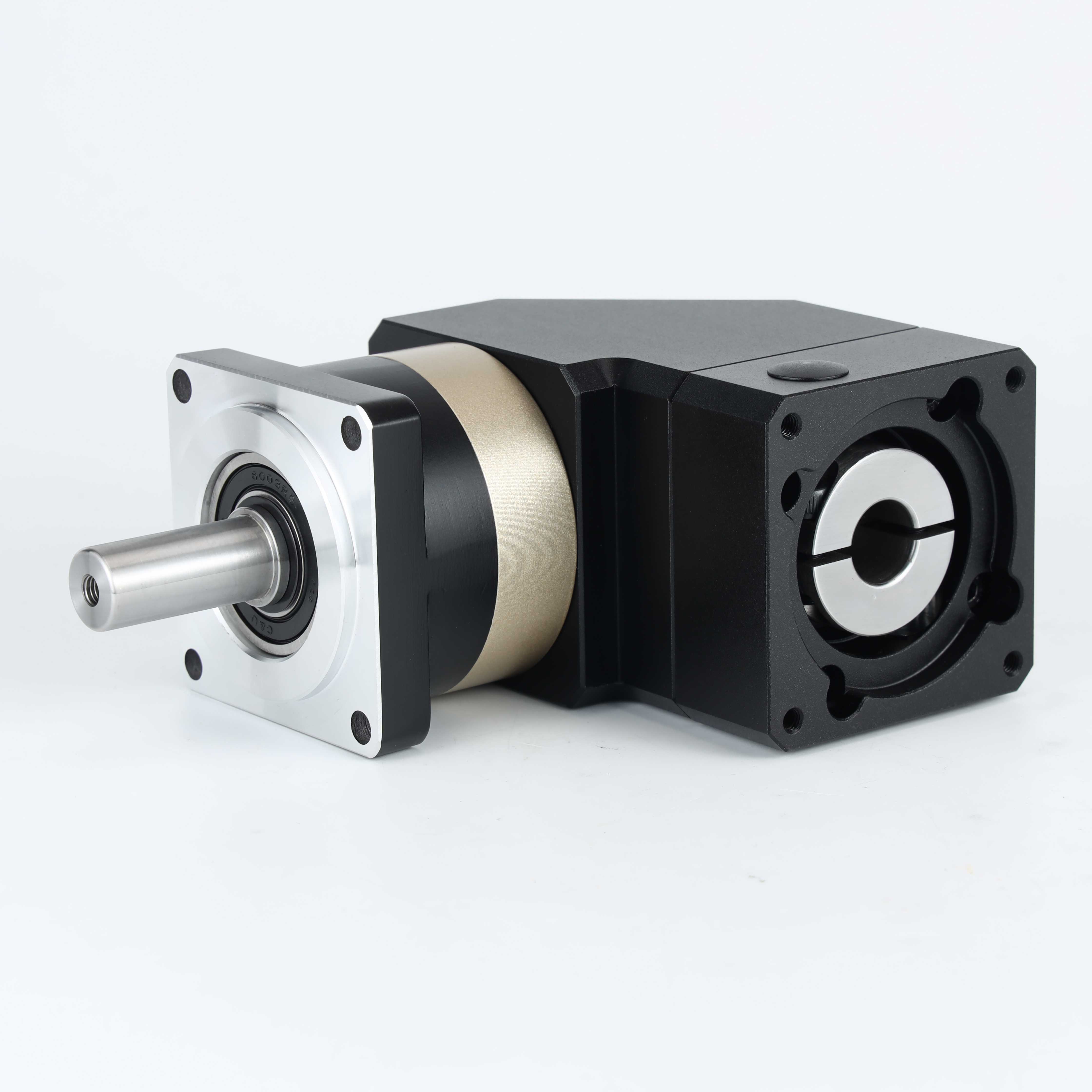

ZPF Series
Right-angle helical gear planetary gearboxes with space-saving design. Ideal for applications with limited mounting space.
Frame Sizes
Multiple sizes available
Reduction Ratios
L1: 3-10 | L2: 12-100
Backlash
≤5 arc-min
Output
Solid Shaft
Need a Quote?
Send InquiryKey Features
Why choose Yongyao ZPF Right-Angle Planetary Gearboxes
Right-Angle Helical Gear Design
90° right-angle helical gear structure with high-quality alloy steel, ensuring smooth meshing, low vibration, and noise below 60dB.
Space-Saving Design
Right-angle output allows for more compact mounting configurations, ideal for space-limited automation scenarios.
Long Life & Maintenance-Free
Lifetime lubrication with high-performance grease, IP65 protection class, fully sealed structure. Service life up to 20,000 hours.
Multiple Sizes & Ratios
Available in multiple frame sizes with single-stage (L1, 3-10) and two-stage (L2, 12-100) reduction options.
High Torque & Efficiency
Optimized planetary carrier design with high torque capacity and excellent overload capability.
Wide Applications
Suitable for packaging machinery, printing equipment, and various space-constrained industrial applications.
Industry Applications
Perfect for space-limited automation applications
Packaging Machinery
Compact packaging lines, vertical form machines
Printing Equipment
Compact printing systems
Automation Systems
Space-constrained installations
Robotics
Compact robot joints
Why Choose Yongyao
Your trusted partner for precision transmission solutions
ISO 9001 Certified
Quality management system ensuring consistent precision and reliability.
CMM Inspection
Every gearbox batch inspected with coordinate measuring machine.
Fast Delivery
Standard 15 days delivery. Express production available.
Competitive Pricing
Direct from manufacturer with flexible OEM/ODM pricing.
