Quick Specs
P0/P2
Precision
10
Sizes
90°
Right Angle
ZPNF Series

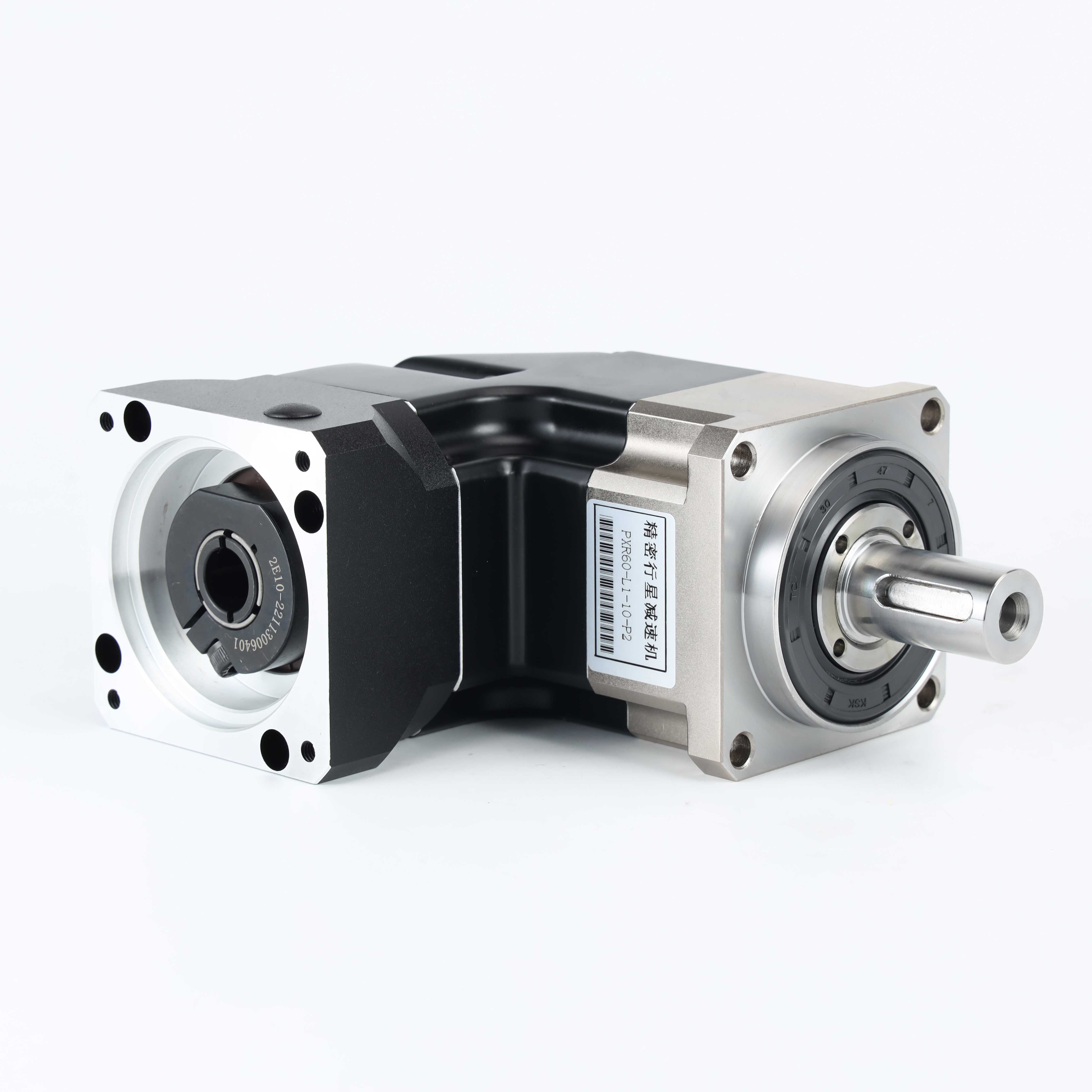

Right-angle helical gear planetary gearboxes with multiple precision grades and sizes. Available in solid or hollow shaft output.
Frame Sizes
42-330 (10 sizes)
Reduction Ratios
L1: 3-10 | L2: 12-100
Precision Grades
P0 (≤5') / P2 (≤3')
Output
Solid / Hollow Shaft
Need a Quote?
Send InquiryKey Features
Why choose Yongyao ZPNF Right-Angle Planetary Gearboxes
High-Precision Helical Gear Design
90° right-angle helical gear structure with high-quality alloy steel, smooth meshing, low vibration, noise below 60dB. P0 (≤5 arcmin) or P2 (≤3 arcmin).
Solid / Hollow Shaft Options
Choose between solid shaft or hollow shaft output to match your application requirements and cable routing needs.
Long Life & Maintenance-Free
Lifetime lubrication with high-performance grease, IP65 protection class, fully sealed structure. Service life more than 20,000 hours.
10 Frame Sizes Available
Available in 10 frame sizes from 42 to 330, with single-stage (L1, 3-10) and two-stage (L2, 12-100) reduction options.
High Torque & Efficiency
Optimized planetary carrier design with high torque capacity. Wide torque range from small to large industrial applications.
Wide Applications
Suitable for various industrial applications requiring right-angle transmission with different precision levels.
Model Number Guide
Understanding ZPNF Series model numbers
Example
ZPNF 090 - L1 - 10 - S - P0
Frame Size
42 / 60 / 90 / 120 / 140 / 180 / 220 / 240 / 280 / 330
Stage
L1 = Single-stage | L2 = Two-stage
Reduction Ratio
L1: 3-10 | L2: 12-100
Output Type
S = Solid Shaft | H = Hollow Shaft
Precision Class
P0 = ≤5 arcmin | P2 = ≤3 arcmin
Industry Applications
Versatile solutions for various industrial needs
Heavy Industry
Large-scale machinery, heavy-duty drives
Robotics
Industrial robots, automated systems
Material Handling
Conveyors, lifting equipment
Machine Tools
CNC machinery, precision drives
Why Choose Yongyao
Your trusted partner for precision transmission solutions
ISO 9001 Certified
Quality management system ensuring consistent precision and reliability.
CMM Inspection
Every gearbox batch inspected with coordinate measuring machine.
Fast Delivery
Standard 15 days delivery. Express production available.
Competitive Pricing
Direct from manufacturer with flexible OEM/ODM pricing.
